Installation Information for Captive Panel Retainers



KNURLED SHANK RETAINERS - Style A Only




Description: http://www.rafhdwe.com/products/knurledretainer.gif



PRESS FIT ONLY

AMERICAN STANDARD SIZES: ALL DIMENSIONS ARE IN INCHES

 SHANK DIA. "B"

.198

.228

.280

.366

.414

.479

 "X" DIA.

.188

.218

.270

.356

.404

.469



PANEL SCREW RETAINERS - Styles B, C, D, E, F & G Only




Description: http://www.rafhdwe.com/products/panelretainer.gif



AMERICAN STANDARD SIZES: ALL DIMENSIONS ARE IN INCHES

SHANK DIA. "B"

.188

.218

.250

.270

.356

.404

.406

.433

 "X" DIA.

.191

.221

.257

.272

.359

.407

.412

.437

 "Y" DIA.

.252

.282

.318

.333

.420

.468

.468

.498

Rule of thumb for "Y" countersink: Y = X + .045 min. or 0.78 max



KNURLED SHANK RETAINERS - Style A Only




Description: http://www.rafhdwe.com/products/knurledretainer2.gif



PRESS FIT ONLY

METRIC SIZES: ALL DIMENSIONS ARE IN MILLIMETERS

 SHANK DIA. "B"

5

5.8

7.1

9.3

 "X" DIA.

4.75

5.54

6.86

9.04

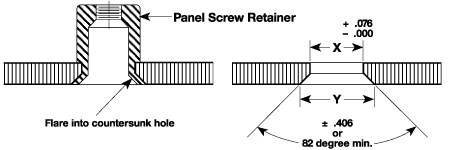

PANEL SCREW RETAINERS - Styles B, C, D, & E Only




Description: http://www.rafhdwe.com/products/panelretainer2.gif



METRIC SIZES: ALL DIMENSIONS ARE IN MILLIMETERS

 SHANK DIA. "B"

6.3

11

 "X" DIA.

6.5

11.2

 "Y" DIA.

8

12.6

Rule of thumb for "Y" countersink: Y = X + 1.14 min. or 1.98 max
